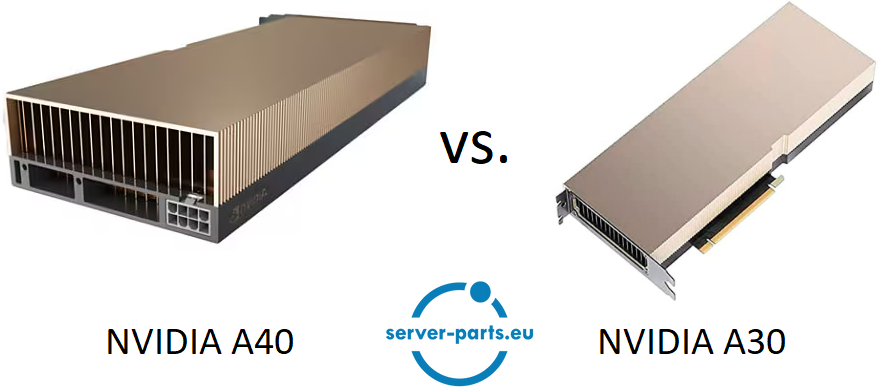

When selecting a GPU for AI, deep learning, and visualization tasks, NVIDIA’s A40 and A30 are two popular options. Although they share many features as part of the Ampere architecture, each GPU is optimized for different workloads.
"Looking to buy NVIDIA A40 or A30 GPUs?"
This detailed NVIDIA A40 vs. A30 comparison will help you understand their unique capabilities and choose the best fit for your needs.
Overview of NVIDIA A40 and A30 GPUs
The NVIDIA A40 and A30 are both built on the Ampere architecture but are designed with different workloads in mind. The A40 excels in visualization and virtual workstations, whereas the A30 is designed for data centers needing efficient AI training and inference. Both GPUs support NVIDIA’s AI and HPC workloads, but they do so in distinct ways.
Architecture Comparison: NVIDIA A40 vs. A30
The Ampere architecture powers both the A40 and A30 GPUs, enabling each to leverage Tensor Cores for deep learning and AI model training:
NVIDIA A40: Primarily designed for visualization and AI-based graphics tasks, the A40 is equipped with 48GB of GDDR6 memory and supports RTX (Ray Tracing), making it ideal for creative applications.
NVIDIA A30: Focused more on AI training and inference, the A30 offers 24GB of HBM2 memory with significant improvements in Tensor Core processing, making it well-suited for high-throughput workloads in data centers.
Performance Comparison: NVIDIA A40 vs. A30
Here’s a breakdown of key specifications to highlight the performance differences between the A40 and A30:
Specification | NVIDIA A40 | NVIDIA A30 |
CUDA Cores | 10,752 | 6,912 |
Tensor Cores | 336 | 276 |
FP64 (Double Precision) | Not significant | 5.2 TFLOPS |
FP32 (Single Precision) | 19.2 TFLOPS | 10.3 TFLOPS |
FP16 (Half Precision) | 78 TFLOPS | 165 TFLOPS |
INT8 Performance | 156 TOPS | 330 TOPS |
Memory Type | 48GB GDDR6 | 24GB HBM2 |
Memory Bandwidth | 696 GB/s | 933 GB/s |
Ray Tracing Support | Yes | No |
Key Takeaway: In single-precision (FP32) performance, the A40 outperforms the A30, making it better for graphics-heavy tasks. The A30, however, excels in FP16 and INT8 precision, ideal for deep learning and inference.
Memory and Bandwidth: NVIDIA A40 vs. A30
Memory is crucial in GPU performance, especially for data-intensive tasks. Here’s how the A40 and A30 compare in memory capacity and bandwidth:
Memory Size:
A40: Equipped with 48GB GDDR6 memory, ideal for high-resolution graphics and visualization tasks.
A30: Contains 24GB HBM2 memory, optimized for fast data access, making it perfect for AI and HPC workloads.
Memory Bandwidth:
A40: Offers 696 GB/s bandwidth, designed for tasks requiring substantial memory but less intensive data transfer.
A30: Provides a higher 933 GB/s bandwidth, essential for memory-intensive deep learning tasks.
Energy Efficiency and Cooling: NVIDIA A40 vs. A30
Energy efficiency is critical for data centers, especially when managing high-density GPU clusters. Here’s how the A40 and A30 compare in this regard.:
Power Draw (TDP):
A40: Rated at 300W, supporting both air and liquid cooling, designed for workstations and high-performance visualization.
A30: Rated at 165W, optimized for data centers focused on energy efficiency, requiring less cooling than the A40.
Cooling Needs: The A40’s higher TDP requires more intensive cooling solutions, especially in high-density configurations, while the A30’s lower TDP is suitable for data centers with limited cooling capacity.
Use Cases: NVIDIA A40 vs. A30
Each GPU is optimized for different types of workloads:
NVIDIA A40 Use Cases:
Virtual Workstations and Visualization: With RTX support and large memory capacity, the A40 is designed for virtual workstations, high-end graphics, and 3D rendering.
Mixed AI and Graphics: The A40’s performance and memory capacity make it suitable for AI applications that require visualization, such as medical imaging or virtual reality.
NVIDIA A30 Use Cases:
AI Training and Inference: With high TFLOPS in FP16 and INT8, the A30 excels in AI model training and deep learning inference.
Data-Intensive HPC Applications: The A30’s high memory bandwidth is ideal for tasks requiring rapid data access, such as scientific simulations and data analytics.
Available Configurations for NVIDIA A40 and A30
NVIDIA offers multiple configurations for both the A40 and A30, allowing users to choose options that best suit their environment and workload demands. Here’s a look at the variations you can find.
NVIDIA A40 Configurations
The A40 comes in different configurations designed for high-performance workstations and visualization tasks. Key variations include:
Standard A40: Equipped with 48GB GDDR6 memory and air cooling, suitable for high-performance desktop workstations.
Liquid-Cooled A40: Optimized for dense, high-power environments, with enhanced cooling performance for demanding workflows.
A40 in Server Racks: Some providers offer A40 units pre-configured in rack-mounted server setups, which can be ideal for data centers focusing on high-performance graphics and mixed AI workloads.
NVIDIA A30 Configurations
The A30 is primarily designed for data center environments, offering configurations that focus on energy efficiency and AI processing:
Standard A30: Includes 24GB HBM2 memory and comes with options for direct integration into server clusters.
Multi-GPU Configuration: The A30 is often available in multi-GPU configurations for data centers needing parallel processing power, making it easier to scale AI training or inference workloads.
A30 with Enhanced Power Efficiency: Some models are optimized with power-efficient designs, which can be beneficial for facilities focused on reducing energy consumption.
Key Insight: For AI-focused environments, multi-GPU configurations of the A30 allow for scalable performance, while the A40’s liquid-cooled models are best for high-density visualization tasks.
Conclusion: NVIDIA A40 vs. A30 – Which GPU Should You Choose?
When comparing the NVIDIA A40 vs. A30, the choice largely depends on your specific workload requirements:
Choose the A40: if you need a GPU for visualization tasks or virtual workstations that demand high memory capacity and RTX support. Its large memory and graphics processing capabilities make it perfect for creative work and graphics-intensive applications.
Choose the A30: if you require efficient AI processing for training and inference, as well as high memory bandwidth for data-intensive tasks. The A30’s optimized performance for FP16 and INT8 makes it a valuable asset for deep learning and HPC tasks in data centers.
Both GPUs offer powerful solutions for AI, HPC, and visualization, but knowing their unique strengths allows you to make the most effective choice for your environment.
